130-160 hp
Horse Power
16F+8R
Number of gears
5810 kg
Weight

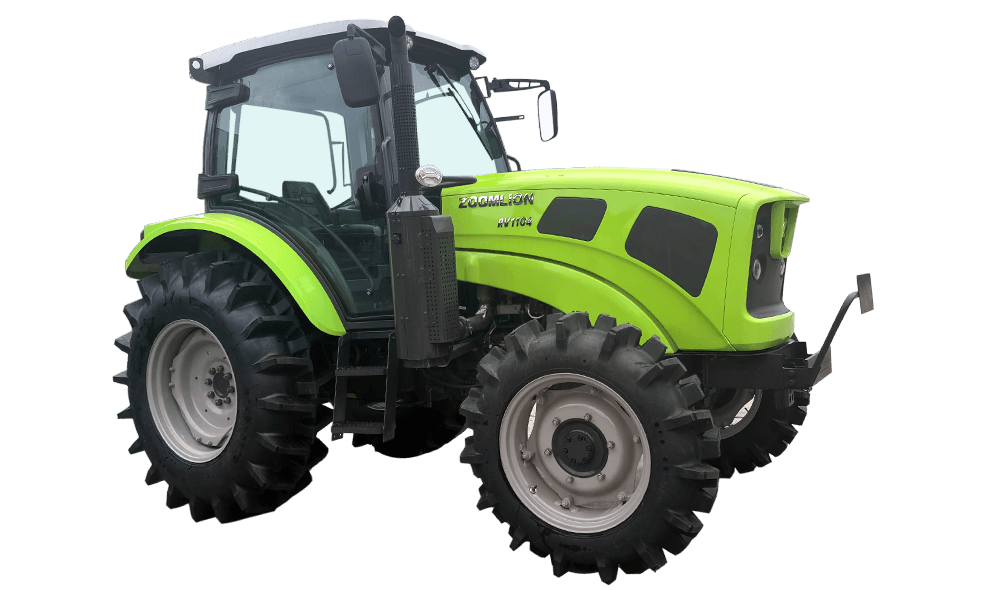

Wheeled Tractor RS1604
| Model | Unit | RS1304/1604Pro |
| Dimensions (L x W x H) | mm | 5200×2435×3250 |
| Wheelbase | mm | 2640 |
| Minimum usable mass | kg | 5810 |
| Minimum ground clearance | mm | 450 |
| Engine emissions | / | National III |
| Calibrated power | kW | 95.5/117.6 |
| Fuel consumption rate | g/kW•h | ≤250 |
| Clutch type | / | Dry, independently operated double acting |
| Number of gears in the gearbox | / | 16F+8R engagement set shift |
| Brake type | / | Wet, Disc |
| Tyre size (front/rear) | / | 14.9-26/18.4-38 |
| Hydraulic lifting system type | / | Half-index lifters |
| Maximum lifting force | kN | ≥40 |
| Tillage depth control method | / | Position adjustment, height adjustment, strong voltage |
| Hydraulic output multi-way valves | / | 3 sets of hydraulic outputs |
| Maximum hydraulic output flow | L/min | 70 |
| Hydraulic suspension mechanism | / | Three point rear suspension, Class III |
| Calibrated traction | kN | 51 |
| PTO power output | kW | 85/104 |
| Power output speed | r/min | 540/1000 |
| Safety rack or cab | / | Air-conditioned cab |
