Crushing & Screening Equipment

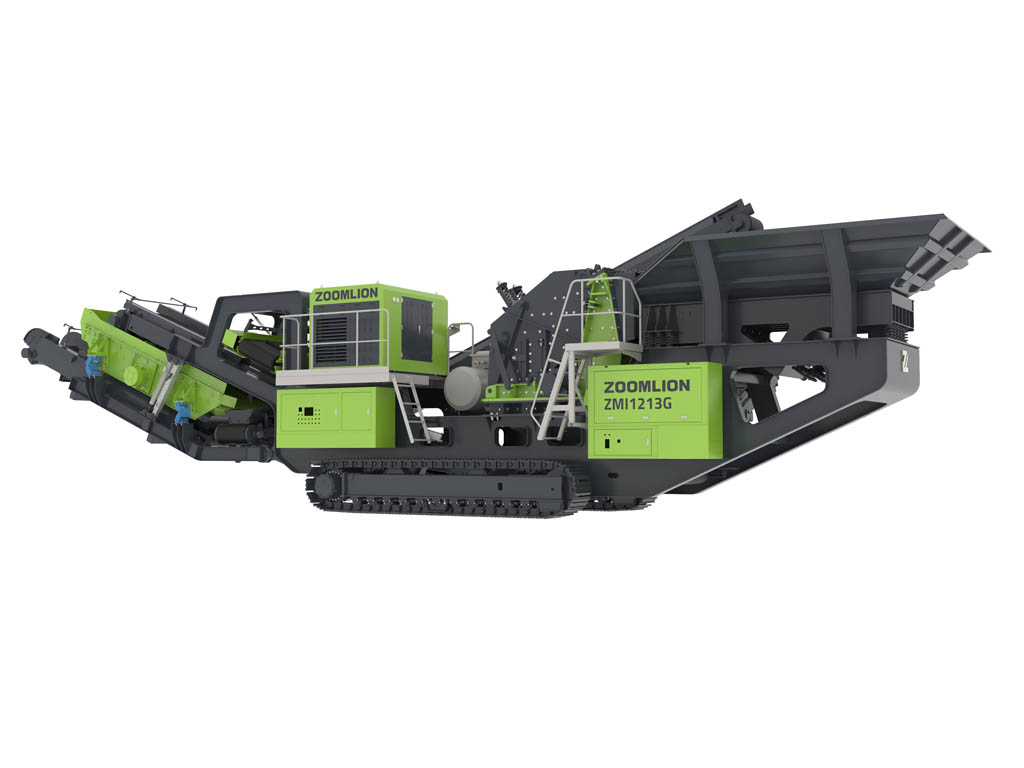

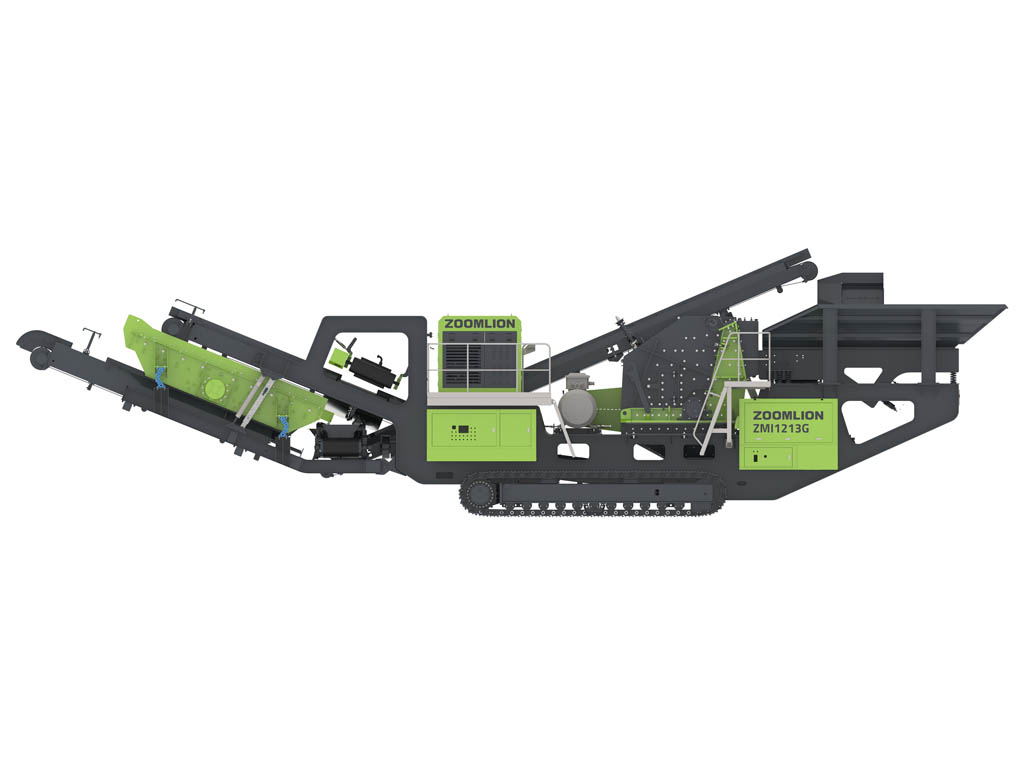

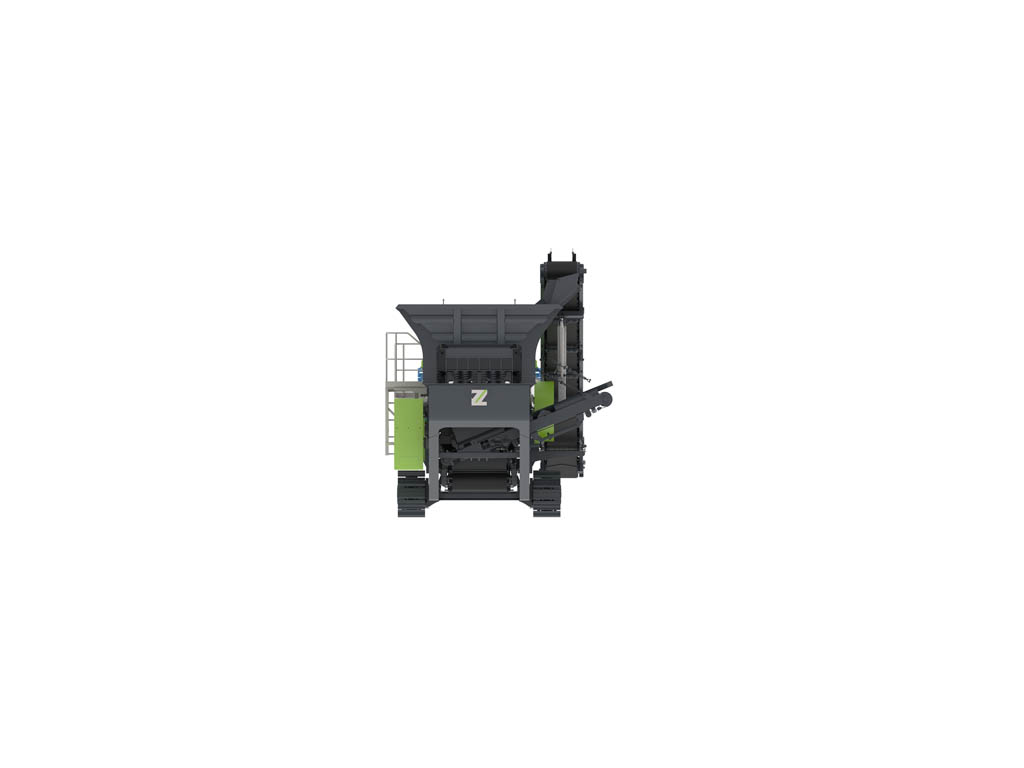

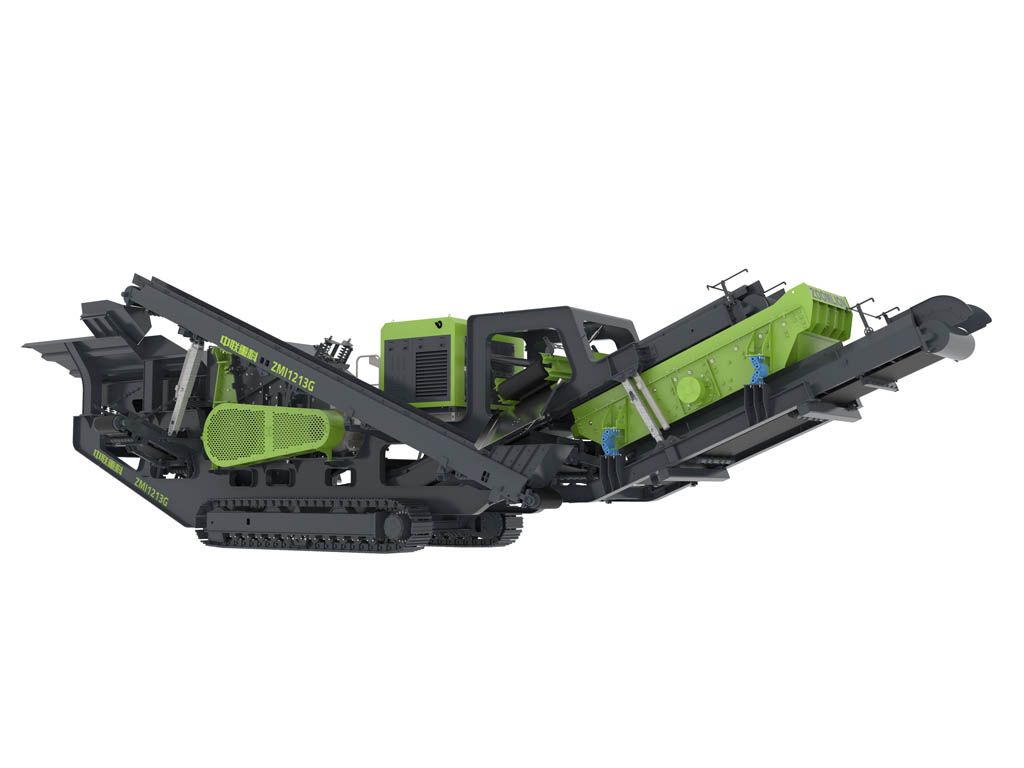

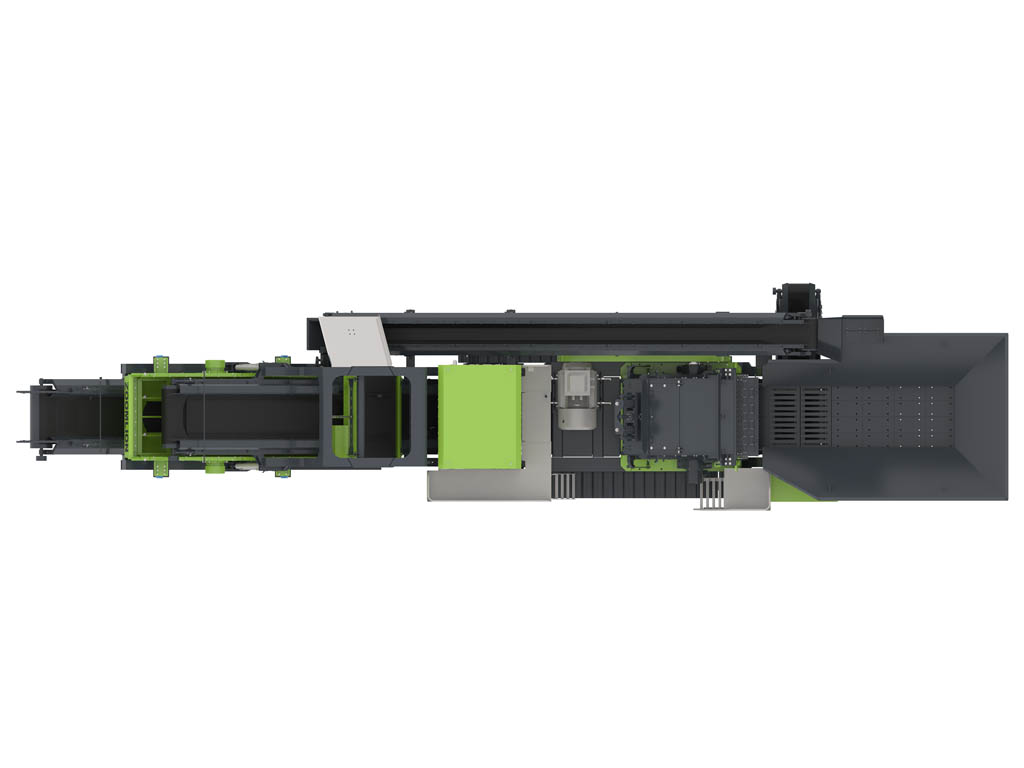

ZMI1213G Mobile Impact Crusher

Modularized assembly technology facilitates transport and maintenance.

The max capacity of ZMI1213G mobile impactor crusher is 350t/h, and the max feeding grain size is 600mm.

The various options that include an additional screen module with a return conveyor, magnetic separator and air blower greatly expand the application.

The ZMI1213G mobile impactor crusher is equipped with a load-sensitive hydraulic control system, which has the advantages of low caloric value, less power loss, accurate and safe control.

Get Pricing

600mm

Maximum feed size

900*1320mm

Feed opening

305 kW

Driving Power

ADVANTAGE INTRODUCTION

  • Use ZCI1213 impact crusher, made by ZOOMLION;
  • Capacity is 350t/h, the max feeding grain size is 600mm;
  • Remote real-time diagnostics & easy process optimization;
  • Low caloric value, less power loss, accurate and safe control;

ZMI1213G Mobile Impact Crusher

Main ParametersUnitValue
Capacityt/h180-350
Inlet Sizemm900x1320
Main Conveyor Width x LengthmmB1000x13000
Discharge Heightmm3200
Crushing Device PowerkW250
Engine PowerkW103
Transport Size Width x Length x Heightm18x3.55x3.75
Total Weightt51
Power Type\E

Enquire about the ZM1213G Mobile Impact Crusher NOW!
